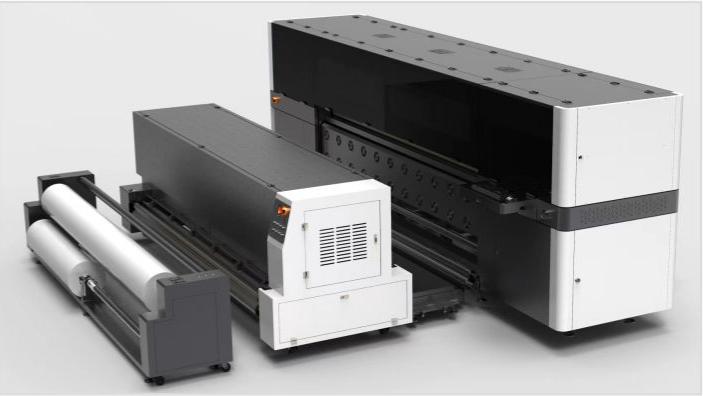

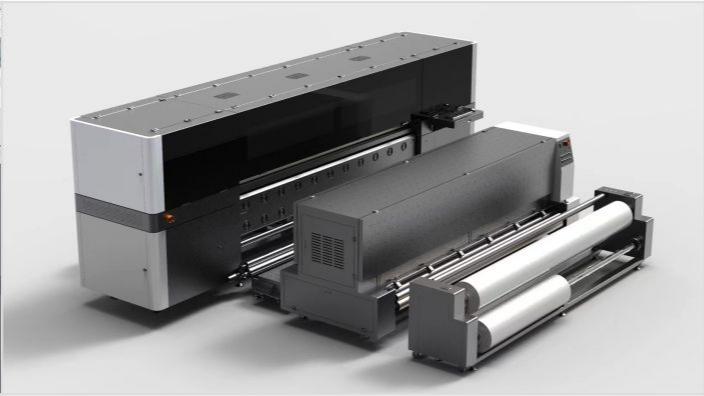

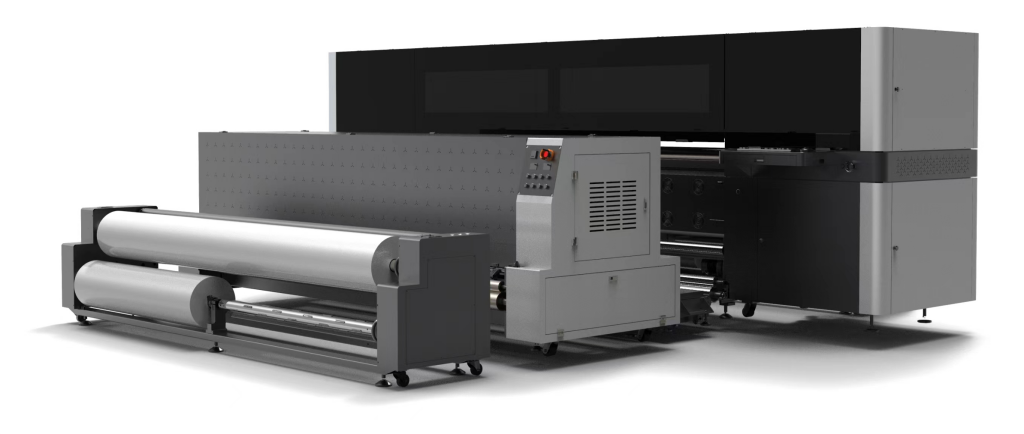

          Universal T3 Sublimation Direct-to-Substrate Printer

          ?Industrial-grade high-speed digital printing system? – A flagship model designed for high-volume production of chemical fiber materials. It embodies ?stability, precision, setting a new benchmark for professional soft signage.


          • Inline technology

          • Fluorescent ink technology

          • 8-color option

          • Textile inkjet printing

          1. Industrial-grade S3200-A3 print heads better meet the demands of industrial-scale production;

          2. With an upgraded body design featuring a stylish and refined appearance and superior craftsmanship, it is the ideal high-performance printer for professional users and high-volume chemical fiber printing;

          3. Equipped with a pneumatic tension control system, it adapts to printing on various types of chemical fiber materials;

          4. Both sides of the printer are built with steel plates and full CNC machining technology, ensuring the stability and parallelism of the transmission system to prevent media wrinkling during feeding;

          5. Steel beams and linear motors are equipped to guarantee the stability and durability of the carriage operation;

          6. A newly developed software platform is adopted, enabling faster and more reliable data transmission and laying the foundation for high-speed printing;

          7. The automatic carriage lifting system allows better adaptation to printing on media of different thicknesses;

          8. It is equipped with a variable frequency adjustable adsorption system;

          9. It features an integrated intelligent servo control unit for synchronized feeding and take-up;

          10. Application fields: Flag fabric, curtains, seat cushions, elastic rotary fabric, wall coverings, chemical fiber light box fabric, heat transfer paper, T-shirts, etc.


          Model

          FA3208-EB

          Type of print head

          Industrial-grade S3200

          Print head quantity

          8-EB two rows

          Draft mode

          276m/h

          Production mode

          198m2/h

          High-precision mode

          148m/h

          Droplet volume

          3.5Pl.

          Print head control

          Software-adjustable voltage

          Printing width

          3300 mm

          Printing resolution

          2400dpi

          Ink type

          Dispersed direct jet ink

          Color profile

          KCMY/KCMY2/KCMYLcLm/KCMYLcLm2/KCMYYMCK

          Drying device

          15KW pre-drying/27KW/Self-made 10.8KW infrared drying

          Ink supply system

          Continuous ink supply system

          Media absorption

          Table vacuum absorption (optional)

          Table pressure

          15kg/m2

          Power supply

          380 V±10% 50 HZ

          Machine size

          6200mm × 5500mm ×2115mm

          Machine weight

          6500 kg

          Printing interface

          USB

          Power supply

          220 V±10% 50 HZ

          Environmental requirements

          Temperature: 150℃ ~ 300℃; relative humidity: 40% ~ 80%

          Other features

          Anti-collision, colored ink pressing, automatic cleaning, two-stage color development, degassing (optional), platform adsorption (optional)
